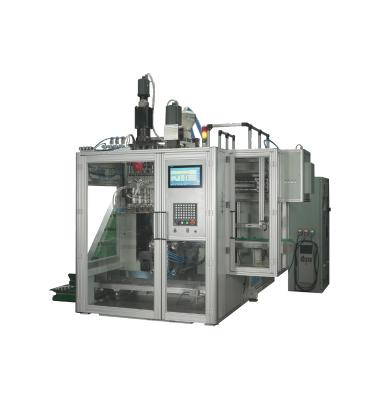

full electrical blow molding machine

Model NO. EPBS-505

Video:
EPBS-505
Environmental protection and energy saving is the target for all industry recent years. EPBS all electric blow molding machine just design according to this tendency.lt provide energy saving, faster production and better quality products. Absence of messy hydraulic oil design help to keep machine clean and better maintenance ,also reduce the pollution to the environment.



Mold Platen Dimensions
Model No. Max. Min. A B C D E F G H I J K
EPBS-505 420 220 340 30 280 40 92 14 95 325 650 225 10

Right Image

Principal Specifications
Model No. Unit EPBS-505Q
Product capacity C.C. 30-200
Product diameter mm 15-65
Screw diameter mm 55
Screw L/D ratio L/D 26/1
Extruder motor hp 20
Screw rotation speed r.p.m 15-65
Extruding capacity kg/hr 36
Die mouth diameter mm 35
Mould center distance mm 85
Clamping force ton 5.3
Dry cycle sec 3
Air pressure kg/cm² 6-8
Air consumption L/min 700
Total power kW/h 52
Machine net weight kg 5200
Machine dimension M 3.8 x 2.5 x 2.95
*All specifications and designs are subject to change without notice.
